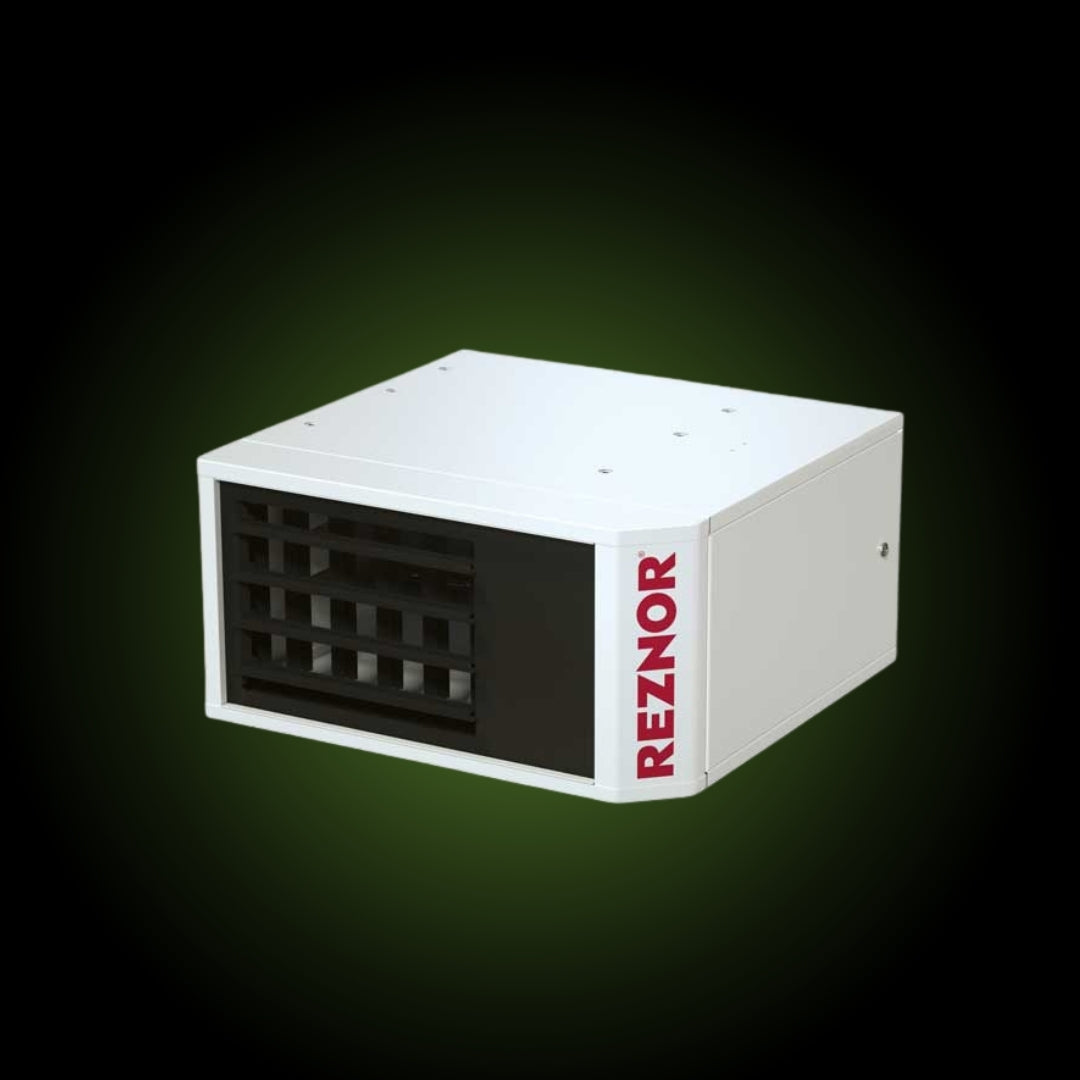

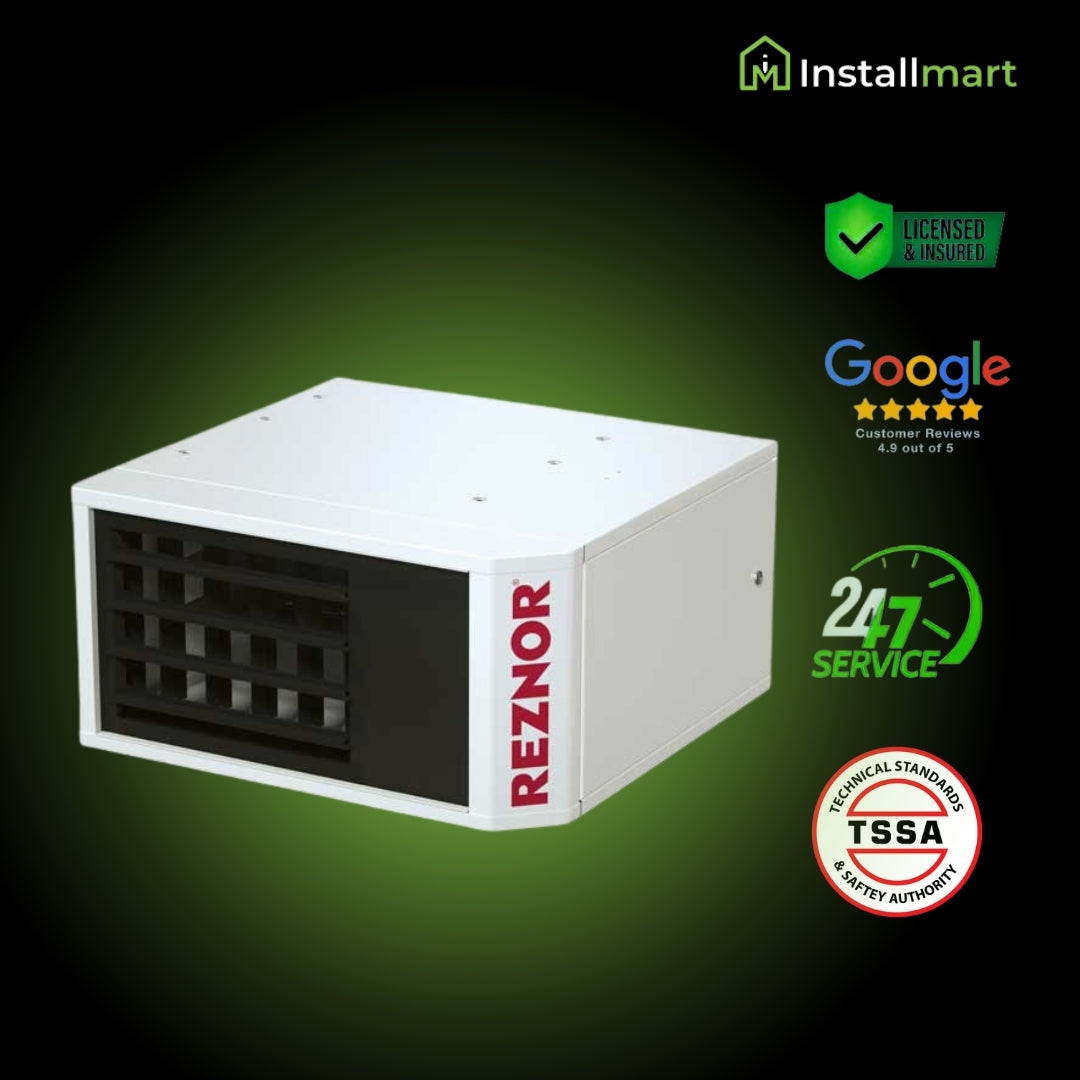

Reznor UDX-175 Gas Unit Heater – 175,000 BTU

The Reznor UDX-175 is a gas-fired, power-vented unit heater designed for efficient and reliable heating in commercial and industrial spaces. With a heating capacity of 175,000 BTU/h and an 83% AFUE efficiency rating, it ensures effective warmth while optimizing energy use.

🔧 Key Features

• High Efficiency: Delivers 83% AFUE, reducing energy consumption and operating costs.

• TCORE2® Heat Exchanger: Constructed from titanium-stabilized aluminized steel for enhanced durability and heat transfer.

• Quiet Operation: Equipped with vibration-isolated fan and venter motors to minimize noise levels.

• User-Friendly Diagnostics: Features a status-indicating LED light and a 7-segment display for straightforward troubleshooting.

• Flexible Mounting Options: Supports both 2- and 4-point suspension configurations for versatile installation.

• Optional Accessories: Compatible with integrated downturn nozzles and vertical louvers to direct airflow as needed.

📐 Specifications

• Model: UDX-175

• Heating Capacity: 175,000 BTU/h

• Airflow: Up to 2,242 CFM

• Sound Level: Approximately 52 dB at 15 feet

• Electrical Requirements: 115V, 1 Phase, 60 Hz, 3.8 Amps

• Gas Connection: 1/2" Natural Gas or Propane

• Vent Size: 5 inches

• Dimensions: 20 1/8" (H) x 38 3/16" (W) x 48 7/16" (D)

• Weight: Approximately 221 lbs

• Air Throw Distance: Up to 90 feet
